Company & Facility

Foundry, Assembly & Metrology

We manufacture vertical machining centers and CNC lathes engineered for long-term geometric stability in multi-shift industrial production.

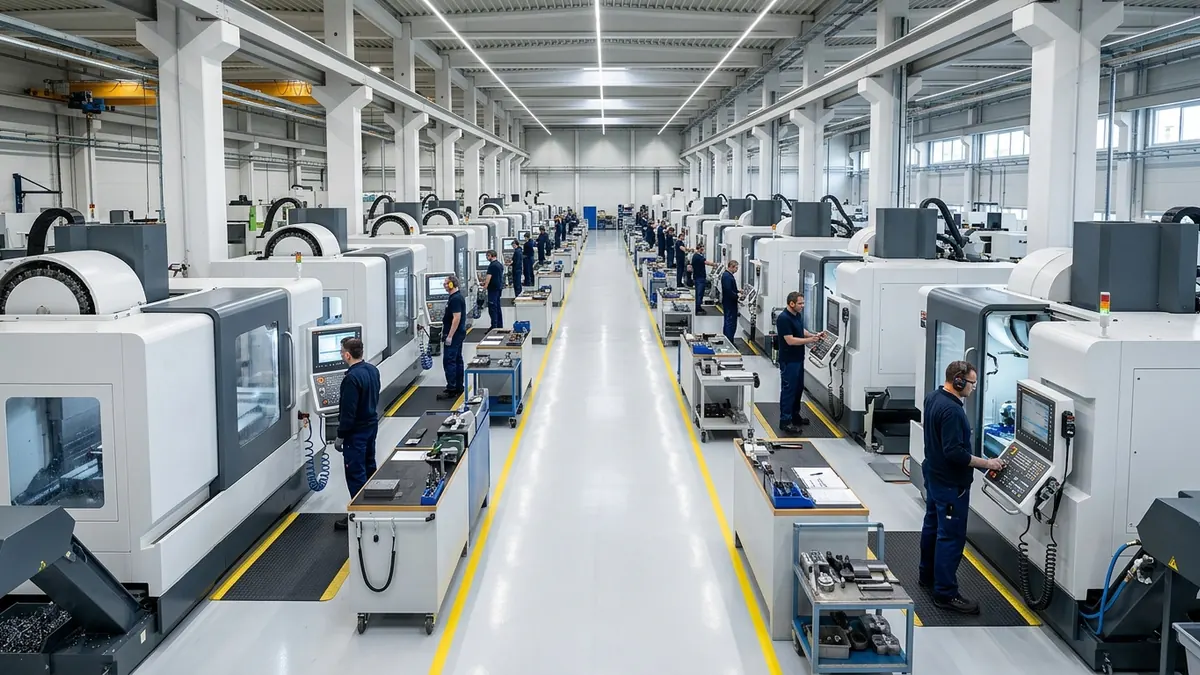

WMT Machine CNC assembly hall with vertical machining centers and slant-bed turning centers undergoing laser inspection

ISO 9001 & ISO 230-2 MANUFACTURING

Focus on Structural Mass & Thermal Stability

In production machining, the lifecycle value of a CNC machine tool depends on how well it holds tolerance after years of continuous multi-shift operation. Every VMC, TCK, and CK model is built around heavy cast-iron ribbing, thermal balance, and straightforward maintenance.

From resin-sand HT300 castings and hand-scraped mounting surfaces to cleanroom spindle assembly, our production process focuses on damping cutting vibration, extending insert life, and maintaining consistent part geometry.

Manufacturing & Quality Control Process

HT300 Casting & Stress Relief

Cast iron beds and columns undergo furnace annealing and aging to eliminate residual casting stress before machining.

Guideway Grinding & Hand Scraping

Datum surfaces are ground on portal grinders followed by manual scraping on spindle head and ball screw mounting joints.

Spindle & Ball Screw Assembly

Spindle cartridges and C3 ball screws are preloaded, thermally run-in, and dynamically balanced to G0.4.

ISO 230-2 Laser Calibration & Cutting Test

Every machine completes laser interferometer pitch compensation, ballbar circularity testing, and a 48-hour test run.

Pre-Shipment Inspection Standards

Each machine ships with a serialized inspection report verifying the following tolerances:

Standard Code	Inspection Item	Instrument	Factory Tolerance
ISO 230-1	Guideway Straightness (X/Y/Z)	Precision Level & Bridge	≤ 0.005 mm / 1000 mm
ISO 230-2	Bidirectional Repeatability	Laser Interferometer	±0.003 mm
ISO 230-4	Circular Interpolation	Ballbar Test	≤ 0.008 mm
ISO 1940	Spindle Balance & Runout	Vibrometer & Test Bar	G0.4 / ≤ 0.002 mm

Export Packaging & Technical Support

All machines are protected with VCI anti-corrosion film, vacuum moisture barriers, and steel-base export crates for ocean or rail freight. We supply documentation in English, Russian, Spanish, and Portuguese, remote commissioning support, and air-freight spare parts.
